Thermal
Imaging Riflescope+Clip on-Hybrid Series-HYH50W
InfiRay
Hybrid offers the versatility to hunt using either a thermal
riflescope or clip-on. Hybrid is equipped with optional external LRF
and ballistic calculation to make accuracy up to ±1MOA. It
adopts a 2K level 2560×1920 full-color OLED display, which
provides excellent display performance while its eyepieces are
designed with user comfort and safety in mind. Hybrid aims to bring
you a hunt like never before.
More
Functional
Hybrid

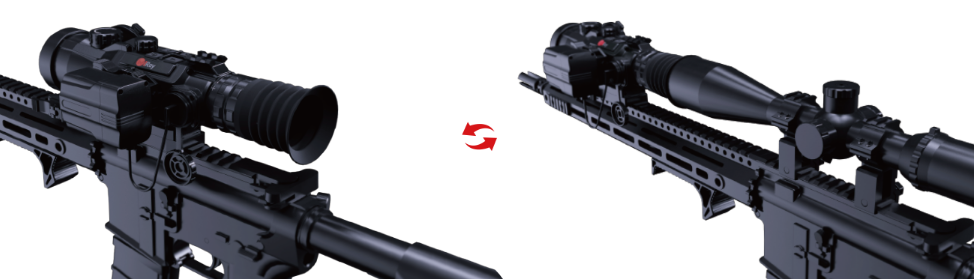

supports both Riflescope and Clip-on Mode. The two modes can be
switched in seconds without changing the eyepiece.
Recoil-Activated
Video
Hybrid
adds a recoil-activated video function to lock the 30-second clips
before and after shooting so that no wonderful moments are missed.
Support video & audio recording. Images and videos can be played
back within devices and transmitted through WiFi.
Ultra
Clear
Apply
a 2K level display to the outdoor hunting field, high resolution
2560×1920 silicon-based OLED display, high contrast and low
power consumption. Able to bring users an ultra-clear and comfortable
visual experience.
Extra
Large Eyebox
The
larger eyebox makes it easy to see clear images in dynamic
situations. The 60 mm long eye relief design avoids eye injury caused
by the recoil of shooting.
Ultra
Precise
Hybrid
supports external laser range finder to generate accurate aiming
points through automatic ballistic calculation of rangefinding
results. The accuracy of Hybrid can reach ±1MOA.
Hybrid
can realize smaller per scale to 1.2cm @100m when zeroing. In
addition, considering the personal habits of different users, Hybrid
is equipped with 7 reticle patterns to meet the aiming needs to the
greatest extent.
Waterproof
& Dustproof
The
whole machine is waterproof (IP67) and dustproof, which can be used
in harsh conditions.
Recoil-absorbing
Mount
The
patented recoil-absorbing mount and new assembly process help Hybrid
pass the rigorous reliability test. The result shows it does not move
from the zero position after more than 20,000 times of 1200g impact.
Hybrid is suitable for the long-term use of a gun that is chambered
for the 7.62×39mm cartridge.
Technical
Specifications
|
Model
|
Hybrid
HYH50W
|
|
Detector
Specifications
|
|
|
Type
|
Uncooled
Vox
|
|
Resolution，pixels
|
640×480
|
|
Pixel
size，μm
|
12
|
|
NETD，mk
|
≤ 25
|
|
Frame
rate，Hz
|
50
|
|
Optical
Specifications
|
|
|
Objective
Lens，mm
|
50
|
|
Field
of View（H×V），°
|
8.8°x6.6°
|
|
Linear
Field of View（H×V），m
at 100m
|
15.4×11.5
|
|
Magnification,
×
|
2.5~20
|
|
Eye
Relief，mm
|
60
|
|
Exit
pupil Diameter，mm
|
23
|
|
Diopter,D
|
-4~
+2
|
|
Detection
Range，m（Target
size：1.7m×0.5m，P(n)=99%）
|
2600
|
|
Display
Specifications
|
|
|
Type
|
AMOLED
|
|
Resolution,pixels
|
2560×1920
|
|
Battery
Power Supply
|
|
|
Battery
|
1
Built-in li-ion battery/4.4Ah/3.7V
|
|
Max.
operating Time(22℃)*，h
|
6
|
|
External
Power Supply
|
5V
(Type C)
|
|
Physical
Specifications
|
|
|
Wi-Fi/APP
|
Support
(InfiRay outdoor)
|
|
Photo/Video
Recorder
|
support
|
|
MIC
|
support
|
|
Bluetooth
|
support
|
|
Memory
Capacity
|
64GB
|
|
IP
rating
|
IP67
|
|
Operating
Tempeture，℃
|
-20℃~+50℃
|
|
Weight，g
|
930
|
|
Dimension，mm
|
280×77×76
|
|
Body
Material
|
Aluminium
alloy
|
|
Connections
and Compatibilities
|
|
|
Impact
|
1200g
|
|
Recommended
Magnification of the Day Sight, ×
|
1-6
|
|
Mount
|
support
|
|
Remote
control
|
support
|
|
Functions
|
|
|
Laser
rangefinder
|
support（external）
|
|
Measuring
Range，m
|
1000/2000
|
|
Measuring
Angle, °
|
/
|
|
Measurement
Accuracy
|
±1m
|
|
Wavelength,
nm
|
905
|
|
Safety
class for laser equipment according to IEC 60825-1:2014
|
3R
|
